AMPFORT M8 Dual Studs Terminal Fuse Block For Large Battery Bank Marine Rated Battery Fuse

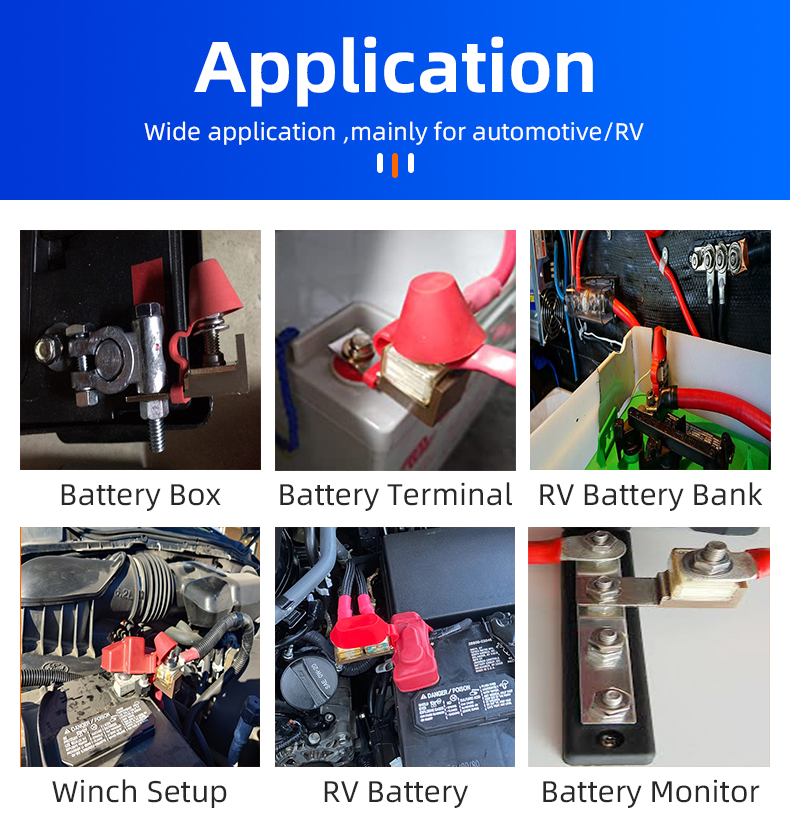

Application Of The Terminal Fuse Block

Full range circuit protection for automotive and marine applications. The breaking capacity meets the requirements of conventional vehicle batteries and 12V, 24V and 42V electrical networks. Compact, high-amp fuse appropriate for DC Main, inverters, windlass, and bow thruster circuit protection. Provides high current protection in tight space constraints. Ignition protected when used with MRBF Terminal Fuse Blocks. Isolated stud design uses standard M8 hardware and permits stacking of terminals.

Main Features Of The Terminal Fuse Block

Note Of The Terminal Fuse Block

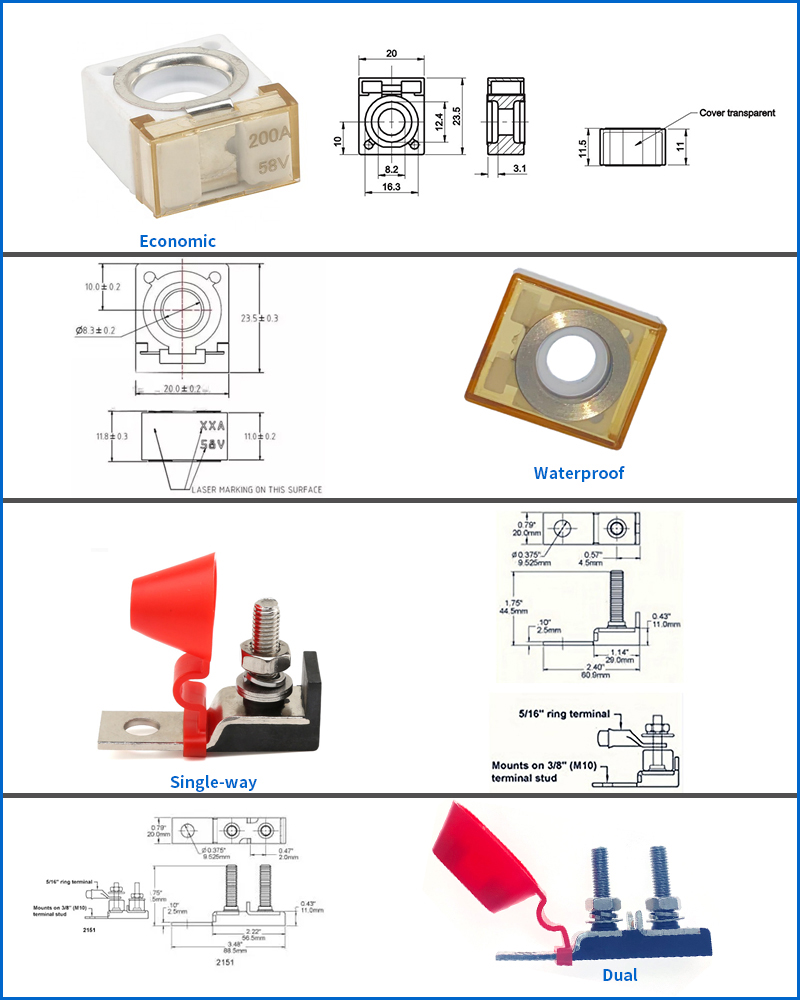

MRBF Terminal Fuse Block Includes: (1) Dual MRBF Terminal Fuse Block, (1) Red Insulator Cap, (2) Washer, (2) Lock Washer, (2) M8 Hex Nut,Insulation nut as below is optional.

Fuses have a Max Voltage Rating: 58V –– Fuse Holder have an Amperage Rating: 30-300A –– Fuses Holder Stud Size: M8 (5/16") –– Fuse Holder Mounting Hole: M10 (3/8")
Compact, high-amp fuse appropriate for DC Main, inverters, windlass, and bow thruster circuit protection. Provides high current protection in tight space constraints. Ignition protected when used with MRBF Terminal Fuse Blocks. Isolated stud design uses standard M8 hardware and permits stacking of terminals.
IGNITION PROTECTED – Safe for installation aboard gasoline powered boats. IP66 – Protected against powerful water jets. 10,000 AIC at 14V DC satisfies ABYC requirements for DC Main circuit protection on large battery banks. [WARNING: Do not mount fuses directly on battery terminals. Must use with Terminal Fuse Blocks.]

Marine Rated battery Fuses Of The Terminal Fuse Block

Designed for the most demanding environment to provide high current protection for the tightest space constraints. Suitable for main and auxiliary circuit protection such as alternator outputs, starter motor inputs and accessory circuits. Alleviates having to make up a short wire to connect to a standard fuse block to the battery. Safe for installation aboard gasoline powered boats.
DO NOT mount fuse directly onto battery post. Fuses should be mounted on the MRBF terminal fuse block. (See examples below)
Ingress Protection: IP66, protected against powerful water jets
Ignition Protected: Per SAEJ1117
