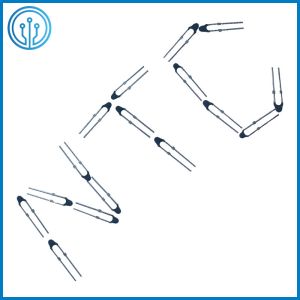

    NTC-103F343FC Frame Lead Type NTC Thermistor 10K 3435 For Energy Storage

    Ask Lasest Price
    Brand Name : AMPFORT
    Model Number : MF52F103F3435FA17XXU
    Certification : ROHS
    Price : 0.35 USD/PC
    Payment Terms : T/T, Western Union
    Supply Ability : 90KKPCS Per month
    Delivery Time : 10 workdays
    • Product Details
    • Company Profile

    NTC-103F343FC Frame Lead Type NTC Thermistor 10K 3435 For Energy Storage


    NTC-103F343FC Frame Lead Type NTC Thermistor 10K 3435 For Energy Storage


    Description Of The NTC Thermistor 10K 3435


    MF52F103F3435FA17XXU NTC Thermistor is frame lead type MF52 bead ntc thermistor with high sensitivity and fast response, as well as small size , low cost ,ideal option for temperature measuring in energy storage , battery,BMS and power supply.

    Note: head size range: 1.8~4MM (according to customer requirements)Epoxy color: black, blue (according to customer's request)Pin type: with snap point, straight feet, double side by side (according to customer requirements)


    Features Of The NTC Thermistor 10K 3435


    1. Radial leaded

    2. Epoxy coated

    3. Wide resistance range: 1KΩ~500KΩ; wide B value range: 2000K~4500K

    4. High precision of resistance value and B value

    5. High test accuracy

    6. Small size, fast reflection speed

    7. Can work stably for a long time, with good consistency

    8. Operating temperature range: -40~125℃


    Electrical characteristics Of The NTC Thermistor 10K 3435


    NTC-103F343FC Frame Lead Type NTC Thermistor 10K 3435 For Energy Storage

    Serial number

    Item


    Symbol

    Test Conditions

    Min.

    Nor.

    Max.

    Unit

    3-1.Resistance At 25℃R25

    Ta=25±0.05℃

    PT≦0.1mw

    9.91010.1
    3-2.B ConstantB25/853400.634353469.3k
    3-3.Thermal Dissipation ConstantσTa=25±0.5℃0.7//mw/℃
    3-4.

    Thermal Time Constant

    (in water)

    τTa=25±0.5℃//5sec
    3-5.Insulation test/100VDC50//
    3-6.Operation Temperature Range//-30/+105

    Product Application Of The NTC Thermistor 10K 3435


    Air conditioning equipment, heating equipment, medical equipment, temperature control instruments, electronic gifts, electronic temperature and humidity meters, car temperature measurement, electronic perpetual calendar, rechargeable battery packs and chargers.
