    Power Marine Dryer Battery Ground PCB Wiring Junction Wire Screw Terminal Block FT06-1W

    Ask Lasest Price
    Brand Name : AMPFORT
    Model Number : FT06-1W
    Certification : VDE,CE,CQC
    Price : To Be Negotiated
    Payment Terms : T/T, Western Union
    Supply Ability : 100KKPCS Per month
    Delivery Time : 10 workdays
    • Product Details
    • Company Profile

    Power Marine Dryer Battery Ground PCB Wiring Junction Wire Screw Terminal Block FT06-1W


    Power Marine Dryer Battery Ground PCB Wiring Junction Wire Screw Terminal Block FT06-1W


    Description Of The Screw Terminal Block


    Terminal blocks are connectors that terminate a single wire and connect it to a circuit or other system. Terminal blocks come in a range of shapes, sizes and ratings, but always terminate a single wire (single pole) and are never multi-pole.This fused terminal block presents a reliable and cost-effective solution to wire-to-wire connections. It features a glass reinforced nylon body that is highly durable for more robust applications.

    This terminal block can be cut down to shorten the length, allowing for a highly customizable connector solution.

    With screw-on terminals, a secure and efficient connection is assured.

    Power Marine Dryer Battery Ground PCB Wiring Junction Wire Screw Terminal Block FT06-1W


    Features and Benefits Of The Screw Terminal Block


    • Fused terminal block
    • Tough Glass Filled UL94V-0 body
    • Screw terminals easy wiring installation


    Application Of The Screw Terminal Block


    Factories use terminal blocks to secure and/or terminate wires. In their most basic form, terminal blocks consist of several individual terminals which are arranged in a long strip. The terminal block is most useful for connecting wiring to ground.

    Modular terminal connectors have a wide range of applications and are a common component in electrical installations of all kinds, both domestic and industrial. The simplicity of their screw-down termination means they are particularly well suited to semi-permanent installations.

    Whether for device connection to printed circuit boards or for wire-to-wire extensions, terminal blocks provide a straight forward and dependable connection solution. These fused terminal blocks are often used in;

    • Connecting lighting to switches
    • Connecting wiring to a ground
    • HVAC Systems
    • Power Supplies


    Electrical Data Of The Screw Terminal Block


    P/NFT06-1W
    Fuseholder6.3A 250V
    Ambient temperaturePolyamide66(V2) T55
    StandardIEC/EN

    Connection Data Of The Screw Terminal Block


    Cross section-Solid conductorFuse holder 2.5-4.0mm2
    Cross section-Stranded conductorFuse holder 2.5-4.0mm2
    Cross section-Fexible conductorFuse holder 2.5-4.0mm2
    Strip length7mm
    ConnectionScrew Fixed
    ScrewM3
    RewirableYes
    Number of terminalMultiway
    Number of connection point1

    Material Of The Screw Terminal Block


    Insulation Material-DesinationPolyamide 66 (V2)
    Flammability ClassUL94-V2
    Clamping UnitBrass,stainless steel(wire protector)
    Fuse5x20mm
    Package quantity1000pcs/carton

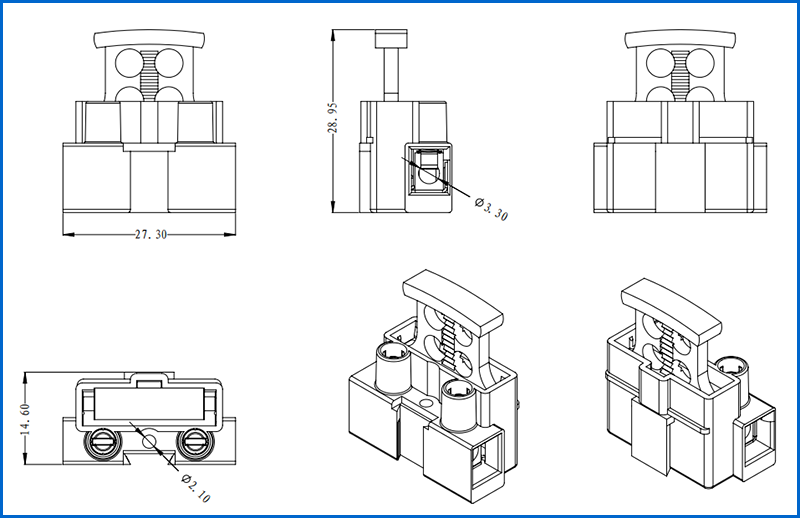

    Dimension Of The Screw Terminal Block
