    SS304 Shell 6x50 Digital DS18B20 Temperature Sensor With 1m Cable

    Ask Lasest Price
    Brand Name : AMPFORT
    Model Number : DS18B20-102L50D6X
    Certification : ROHS,UL
    Price : 3 USD/PC
    Payment Terms : T/T, Western Union
    Supply Ability : 10,000,000pcs per month
    Delivery Time : 10 workdays
    • Product Details
    • Company Profile

    SS304 Shell 6x50 Digital DS18B20 Temperature Sensor With 1m Cable


    Medical Motor Industry 304 Stainless Steel Shell 6x50 Digital DS18B20 Temperature Sensor 1m Cable


    [Application description] Used for medical, electrical, industrial, temperature calculation
    [Application description] The digital signal temperature sensor has fast response speed and high accuracy. Easy to install


    Description Of The DS18B20 Temperature Sensor


    DS18B20 is a commonly used digital temperature sensor. Its output is a digital signal. It has the characteristics of small size, low hardware overhead, strong anti-interference ability, and high precision. The DS18B20 digital temperature sensor is easy to wire and can be used in many occasions after being packaged, such as pipeline type, threaded type, magnet adsorption type, stainless steel package type, and various models, such as LTM8877, LTM8874 and so on.

    Mainly change its appearance according to different applications. The packaged DS18B20 can be used for cable trench temperature measurement, blast furnace water cycle temperature measurement, boiler temperature measurement, machine room temperature measurement, agricultural greenhouse temperature measurement, clean room temperature measurement, ammunition warehouse temperature measurement and other non-limiting temperature occasions. Wear-resistant and anti-collision, small size, easy to use, various packaging forms, suitable for digital temperature measurement and control of various narrow space equipment.


    Application Of The DS18B20 Temperature Sensor


    This product is suitable for temperature measurement and control fields such as freezer, granary, storage tank, telecommunications room, electric power room, cable trunking and so on.
    Temperature measurement and control of industrial equipment in small spaces such as bearings, cylinders, textile machinery, air conditioners, etc.
    Automobile air conditioners, refrigerators, freezers, and medium and low temperature drying boxes, etc.
    Heat metering for heating/cooling pipes, household thermal energy metering for central air-conditioning, and temperature measurement and control in industrial fields.


    Material Lists Of The DS18B20 Temperature Sensor


    NOMaterial NameItem/PN
    2-1.ChipDigital sensor chip DS18B20
    2-2.Epoxy resinJ105/J106B/J05X G208/GU01 white
    2-3.ShellФ6.0*50 Stainless steel shell
    2-4.Tube1.5 Black double-wall thermal shrinkage tube L=15mm*3
    2-5.Lead wire2464#3C OD4.0mm + PVC +unshield
    2-6TubeΦ6.4Black double wall heat-shrinkable tubing L=30mm

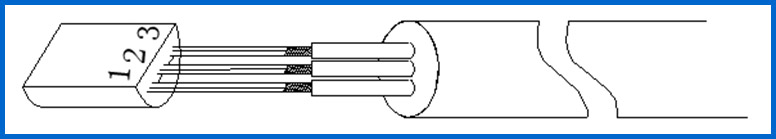

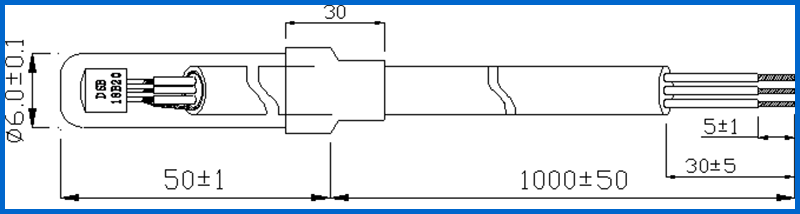

    Dimension and Wiring Of The DS18B20 Temperature Sensor


    Pin 1 Soldering to black GND ;

    Pin 2 Soldering to white DQ ;

    Pin 3 Soldering to red VDD;


    Reliability Test Of The DS18B20 Temperature Sensor


    Test ItemTest StandardTest methodPerformance requirements
    Zero Power ResistanceIEC 60539-1Immerse samples in the constant temperature bath at 25℃±0.005℃,test steady resistance

    Resistance tol ±1%


    B valueIEC60539-1Immerse samples in the constant temperature bath at 25℃,50℃(or 85℃), test steady resistance,and calculate B value

    Resistance tol ±1%


    Free fall

    IEC60068-2-32


    Fall height: 1.5±0.1m,Surface: Cement , 1 time

    No obvious damage, R25 △R/R≤±1%


    Insulation

    IEC60539-1


    500V pressure on insulation shell test insulation resistance

    >500MOhm


    Withstand voltageIEC60539-1

    Withstand voltage: 1500V/AC ,Leakage current:2mA Lasting: 60sec


    No obvious damage


    TensionIEC60068-2-21

    Pull uniform speed at the end, F>4.0KG(requested by customer)


    No obvious damage, R25 △R/R≤±1%


    VibrationQ/HBm 108-94Test frequency: 10~500Hz,swing: 1.2mm acceleration: 30m/s2 Direction X,Y,Z Time:8Hour/direction

    No obvious damage, R25 △R/R≤±1%


    Steady humidity and heatIEC60068-2-78Temp:40±2℃ Humidity:92-95%RH Time:1000±24Hour

    No obvious damage, R25 △R/R≤±1%


    Thermal time constantEC60539-1Immerse in 25℃ water,after thermal balance,immerse in 85℃,resistance arrives 63.2%,calculate total time

    <10 sec


    High temperature storageIEC60068-2-2Temp:125℃±5℃ Time: 1000±24HourNo obvious damage, R25 △R/R≤±1%
    Cold and thermal shockIEC60068-2-14

    -40℃~+125℃ T1:30min Cycle time:1000


    No obvious damage, R25 △R/R≤±1%


    Knock experimentIEC60068-2-77

    Acceleration:250m/s2 Pulse lasting: 6ms Knock times: 1000 Recovery time: 2 Hour


    No obvious damage, R25 △R/R≤±1%


    Low temperature storageIEC60068-2-1

    Temp: 40±2℃ Time: 1000±24Hour


    No obvious damage, R25 △R/R≤±1%


    Salt sprayIEC60068-2-11Temp: 35±2℃ Collection hour : 1.0mL~2.0mL Time: determine per as actual demand

    No obvious damage, R25 △R/R≤±1%
