    Automatic Transmission Oil Stainless Steel Temperature Sensor 5k Ohm 3470


    High Temperature Automatic Transmission Oil Stainless Steel Temperature Sensor 5k Ohm 3470


    Application description: Suitable for temperature control module in gearbox;
    Assembly method: Bolt connection.


    Installation location and function of transmission oil temperature sensor


    The transmission oil temperature sensor is installed on the valve plate in the oil pan of the automatic transmission, and is used to detect the temperature of the hydraulic oil of the automatic transmission as the basis for the electronic control unit to perform shift control, oil pressure control and lock-up clutch control.

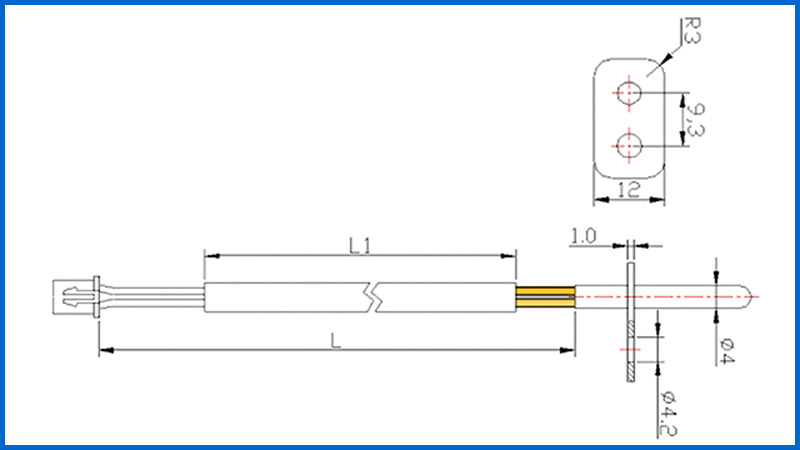

    Dimension Of The Stainless Steel Temperature Sensor (mm)



    Structure and working principle of transmission oil temperature sensor


    Inside the transmission oil temperature sensor is a negative temperature coefficient semiconductor thermistor. The higher the temperature, the lower the resistance. The characteristic curve of its resistance changing with temperature changes can be seen in the characteristics of the negative temperature coefficient thermistor in the coolant temperature sensor. The computer detects the temperature of the hydraulic oil of the automatic transmission according to the change of its resistance.


    Detection method of transmission oil temperature sensor


    (1) Measure the resistance value of the oil temperature sensor
    Remove the transmission oil temperature sensor, place the sensor in a beaker filled with water, heat the water in the cup, and measure the resistance between the two terminals of the sensor at different temperatures.

    (2) Standard value of sensor resistance
    Compare the measured resistance value with the specified value, if the resistance value is less than the specified value
    If it is large, it should be replaced.


    NTC Thermistors Of The Stainless Steel Temperature Sensor


    Automatic Transmission Oil Stainless Steel Temperature Sensor 5k Ohm 3470


    5K 3950 Of The Stainless Steel Temperature Sensor


    Temp.

    (deg. C)

    Rmax

    (k Ohms)

    Rnor

    (k Ohms)

    Rmin

    (k Ohms)


    -3093.180689.633386.2123
    -2987.480484.202781.0396
    -2882.165879.136376.2109
    -2777.208574.407671.7011
    -2672.582169.991967.4873
    -2568.262765.866663.5482
    -2464.227962.010859.8643
    -2360.457358.405456.4174
    -2256.932055.032453.1909
    -2153.634551.875650.1694
    -2050.548848.919847.3385
    -1947.660146.151044.6852
    -1844.954443.556242.1973
    -1742.419341.123539.8634
    -1640.042838.841837.6731
    -1537.814236.700935.6168
    -1435.723434.691233.6854
    -1333.761032.803831.8706
    -1231.918531.030830.1647
    -1130.187829.364428.5606
    -1028.561427.797627.0516
    -927.032526.324025.6314
    -825.594724.937424.2944
    -724.242123.632223.0353
    -622.969022.403121.8489
    -521.770521.245320.7308
    -420.641620.154319.6765
    -319.577919.125818.6822
    -218.575418.155917.7440
    -117.630117.240816.8585
    016.738516.377316.0223
    115.897315.562215.2326
    215.103214.792314.4864
    314.353414.065113.7811
    413.645213.377813.1143
    512.976112.728112.4836
    612.343612.113711.8869
    711.745611.532511.3222
    811.180010.982510.7875
    910.644810.461910.2811
    1010.13849.96909.8014
    119.65899.50219.3468
    129.20489.05978.9159
    138.77468.64048.5073
    148.36708.24288.1197
    157.98067.86587.7520
    167.61427.50827.4030
    177.26667.16887.0716
    186.93696.84676.7569
    196.62406.54086.4580
    206.32696.25036.1740
    216.04475.97425.9040
    225.77685.71195.6473
    235.52215.46265.4032
    245.28015.22555.1710
    255.05005.00004.9500
    264.83544.78554.7355
    274.63114.58134.5315
    284.43664.38694.3374
    294.25134.20194.1526
    304.07474.02563.9767
    313.90643.85773.8092
    323.74593.69773.6497
    333.59293.54523.4977
    343.44703.39973.3528
    353.30783.26113.2147
    363.17493.12883.0830
    373.04813.00262.9574
    382.92702.88212.8376
    392.81142.76712.7233
    402.70092.65732.6141
    412.59532.55242.5100
    422.49452.45222.4105
    432.39812.35652.3155
    442.30592.26502.2247
    452.21772.17762.1379
    462.13332.09392.0550
    472.05262.01391.9757
    481.97541.93741.8999
    491.90151.86421.8274
    501.83071.79411.7580
    511.76291.72701.6917
    521.69801.66281.6281
    531.63581.60121.5673
    541.57621.54231.5090
    551.51901.48581.4532
    561.46421.43171.3998
    571.41171.37991.3486
    581.36131.33011.2995
    591.31301.28241.2525
    601.26661.23671.2074
    611.22211.19281.1641
    621.17941.15071.1226
    631.13841.11031.0828
    641.09901.07151.0446
    651.06121.03431.0079
    661.02490.99850.9727
    670.99000.96420.9389
    680.95640.93120.9065
    690.92420.89950.8753
    700.89320.86900.8454
    710.86340.83970.8166
    720.83470.81150.7890
    730.80710.78450.7624
    740.78060.75840.7368
    750.75510.73340.7122
    760.73050.70930.6886
    770.70680.68610.6659
    780.68410.66380.6440
    790.66210.64230.6229
    800.64100.62160.6027
    810.62070.60160.5832
    820.60110.58250.5644
    830.58220.56400.5463
    840.56400.54620.5289
    850.54640.52900.5121
    860.52950.51250.4959
    870.51320.49650.4803
    880.49750.48110.4653
    890.48230.46630.4508
    900.46760.45200.4369
    910.45350.43820.4234
    920.43990.42490.4104
    930.42670.41210.3979
    940.41400.39970.3858
    950.40170.38770.3741
    960.38990.37620.3629
    970.37840.36500.3520
    980.36740.35430.3415
    990.35670.34390.3314
    1000.34640.33380.3216
    1010.33640.32410.3122
    1020.32680.31470.3031
    1030.31750.30570.2943
    1040.30850.29690.2857
    1050.29970.28840.2775
    1060.29130.28020.2696
    1070.28320.27230.2619
    1080.27530.26470.2544
    1090.26770.25730.2472
    1100.26030.25010.2403
    1110.25310.24320.2336
    1120.24620.23650.2271
    1130.23950.23000.2208
    1140.23300.22370.2147
    1150.22680.21760.2088
    1160.22070.21170.2031
    1170.21480.20600.1975
    1180.20910.20050.1922
    1190.20360.19510.1870
    1200.19820.18990.1820
    1210.19300.18490.1771
    1220.18800.18000.1724
    1230.18310.17530.1679
    1240.17840.17080.1634
    1250.17380.16630.1591
    1260.16930.16200.1550
    1270.16500.15790.1510
    1280.16090.15380.1471
    1290.15680.14990.1433
    1300.15290.14610.1396
    1310.14900.14240.1360
    1320.14530.13880.1326
    1330.14170.13530.1292
    1340.13820.13200.1260
    1350.13480.12870.1228
    1360.13150.12550.1198
    1370.12830.12240.1168
    1380.12520.11950.1139
    1390.12220.11650.1111
    1400.11930.11370.1084
    1410.11640.11100.1058
    1420.11370.10830.1032
    1430.11100.10570.1007
    1440.10840.10320.0983
    1450.10580.10080.0959
    1460.10340.09840.0937
    1470.10100.09610.0914
    1480.09860.09380.0893
    1490.09630.09170.0872
    1500.09410.08950.0851
    1510.09200.08750.0832
    1520.08990.08550.0812
    1530.08790.08350.0794
    1540.08590.08160.0775
    1550.08400.07980.0758
    1560.08210.07800.0740
    1570.08030.07620.0724
    1580.07850.07450.0707
    1590.07680.07290.0691
    1600.07510.07120.0676
    1610.07340.06970.0661
    1620.07190.06820.0646
    1630.07030.06670.0632
    1640.06880.06520.0618
    1650.06730.06380.0605
    1660.06590.06240.0592
    1670.06450.06110.0579
    1680.06310.05980.0566
    1690.06180.05850.0554
    1700.06050.05730.0542
    1710.05920.05610.0531
    1720.05800.05490.0520
    1730.05680.05380.0509
    1740.05560.05260.0498
    1750.05450.05150.0488
    1760.05340.05050.0477
    1770.05230.04950.0467
    1780.05120.04840.0458
    1790.05020.04750.0448
    1800.04920.04650.0439
    1810.04820.04560.0430
    1820.04730.04460.0422
    1830.04630.04380.0413
    1840.04540.04290.0405
    1850.04450.04200.0397
    1860.04370.04120.0389
    1870.04280.04040.0381
    1880.04200.03960.0374
    1890.04120.03880.0366
    1900.04040.03810.0359
    1910.03960.03740.0352
    1920.03890.03660.0345
    1930.03810.03590.0339
    1940.03740.03530.0332
    1950.03670.03460.0326
    1960.03600.03390.0320
    1970.03540.03330.0314
    1980.03470.03270.0308
    1990.03410.03210.0302
    2000.03350.03150.0296
