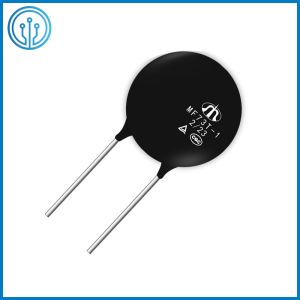

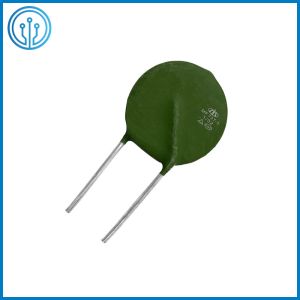

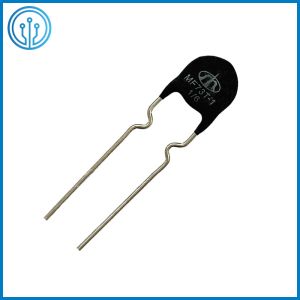

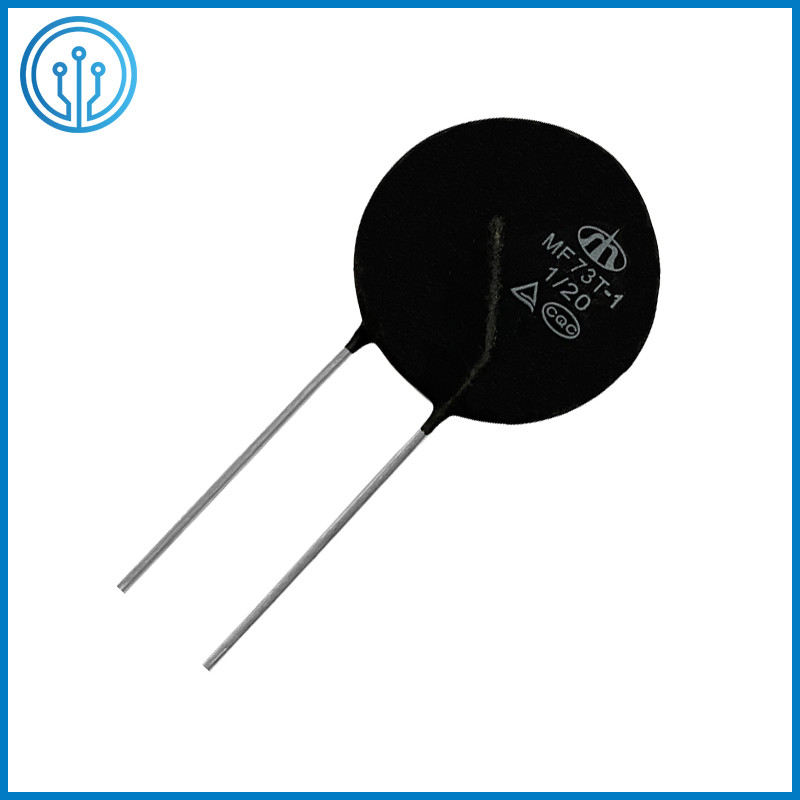

    SCK Ametherm Amphenol Cross Inrush NTC Power Thermistor MF73T

    Ask Lasest Price
    Brand Name : SHIHENG
    Model Number : MF73T
    Certification : CQC,TUV
    Price : Depends on specification
    Payment Terms : T/T, Western Union,Paypal
    Supply Ability : 80,000pcs per week
    Delivery Time : 10 workdays
    • Product Details
    • Company Profile

    SCK Ametherm Amphenol Cross Inrush NTC Power Thermistor MF73T


    SCK Ametherm Amphenol Cross Inrush Negative Temperature NTC Type Power Thermistor MF73T


    Short overview Of The NTC Type Power Thermistor MF73T


    R25(Ω): 0.2~400

    Imax(A): 40A
    [Product Features] Small size, high power, strong ability to suppress surge current
    [Product use] High-power switching power supply, conversion power supply, UPS power supply


    Features Of The NTC Type Power Thermistor MF73T


    ● Small size, high power, strong ability to suppress surge current.

    ● The material constant (B value) is large, the residual resistance is small, and its own power consumption is small.

    ● Large current, long life, high reliability.

    ● Easy to install the circuit board, complete series and wide application range.


    Application Scope Of The NTC Type Power Thermistor MF73T


    High-power switching power supply, conversion power supply, UPS power supply.
    High-power battery chargers, electric car chargers.
    High-power LED lights, high-power electronic energy-saving lamps and other lighting fixtures.


    Size Of The NTC Type Power Thermistor MF73T (mm)


    MF73T-1

    Body sizeΦ3Φ5Φ8Φ10Φ13Φ15Φ20Φ25Φ30Φ35Φ40
    Diameter (Dmax)4.57111315.517.522.529354045
    Thickness (Tmax)4.555.55.56678101212
    Pitch (F±1)2.52.57.57.57.57.5101018±1 .518±1.518±1.5l
    Lead diameter (d±0.05)0.450.450.80.80.80.8111.622.0(26)
    Lead length (L)min2525252525252525252525
    Lead length (L1)min//171717171717///
    Regular lead Shape(II) straight(II) straight(I) inside kink(I) inside kink(I) inside kink(I ) inside kink(II) straight(II) straight

    (II)

    straight

    (II)

    straight

    (II) straight
    Special lead Shape//(II) straight(II) straight(II) straight(II ) straight( III) outside kink

    ( III)

    Outside

    kink


    MF73T-2

    Body sizeΦ20Φ25Φ30Φ35Φ40
    (Dmax)/Diameter22.529354045
    (Tmax)/Thickness1012151818
    (F)/Pitch10.010.0181818
    (d±0.05)/Lead diameter1.21.21.622.0/2.6
    (L)/Lead length min1717171717
    Height (A) max3840555860
    Normal lead structureY Kink

    Note: 2.6mm lead would be applied when Imax is above 32A for D40


    Specification Of The NTC Type Power Thermistor MF73T


    Part No

    MF73T


    Max Steady

    State Current(A)

    Approx.R of

    Max.Cur.(Ω )

    Operating

    Temp.(℃ )

    Max surge

    capactiance

    current

    240V/vc

    Φ30.3~20.493~7.346-140 ±15047~100
    Φ50.3~3.50.920~16.1-140 ±15047~110
    Φ80.5~70.032~9.956-140 ±170100~220
    Φ101.3~80.041~2.895-140 ±170220~470
    Φ131.8~90.032~0.994-140 ±200560~680
    Φ152.5~110.024~0.652-140 ±200680~1000
    Φ203~160.026~0.047-140 ±2001000~3000
    Φ258~220.017~0.132-140 ±2001200~3500
    Φ309~300.013~0.133-140 ±2001500~4700
    Φ3510~ 320.01~0.089-140 ±2002200~4700
    Φ4013~400.005~0.074-140 ±2003000~8000
