    0.25A - 6.3A 250V Time Lag Glass Tube Fuse For Lighting Devices

    Ask Lasest Price
    Brand Name : AMPFORT
    Model Number : TBP
    Certification : UL,CCC,VDE
    Price : Contact us please
    Payment Terms : T/T
    Supply Ability : 500000pcs per day
    Delivery Time : 7 workdays
    • Product Details
    • Company Profile

    0.25A - 6.3A 250V Time Lag Glass Tube Fuse For Lighting Devices


    UL CCC VDE Time Lag Glass Tube Fuse 0.25A-6.3A 250V For Lighting Devices


    Scope of Application Of The UL CCC VDE Time Lag Glass Tube Fuse 0.25A-6.3A 250V


    This product is suitable for various kinds of electronic devices’ circuit over current protection. Widely used in industrial of Lighting, Power supply and Adapter applications, etc.


    Standards and Agency Approvals Of The UL CCC VDE Time Lag Glass Tube Fuse 0.25A-6.3A 250V


    * Operating Temperature:-55℃~+125℃

    * Stock Condition: Humidity:Relative humidity ≤ 75% store 3 years in average.

    * Standards:In accordance with IEC60127-1, IEC60127-3, GB9364.1, GB9364.3.

    * Certifications:

    Voltage Rating

    Agency

    Ampere Range

    Agency File Number

    250VUR250mA ~ 5AE340427(JDYX)
    C-UR250mA ~ 5AE340427( JDYX7)
    CCC250mA ~ 5A2019010207239564
    VDE500mA,1A,1.25A,1.6A,2A,2.5A,3.15A,5A40032053

    * Installation Recommendations : A. Horizontal installation B. Vertical installation C. Vertical installation

    * Breaking Capacity: 35A or10In whichever is greater at 250V AC.
    * The insulation resistance value of fuse is greater than 0.1ΜΩ after breaking capacity testing.

    * Rising Temperature Test:Under the ambient temperature of 25±5℃, through 1.5 times the rated current for 15 minutes, then every 15 minutes, add an increase of 0.1 times the rated current. When operates, the temperature rise in any part of fuse should not exceed 135℃.


    Part Numbering Of The UL CCC VDE Time Lag Glass Tube Fuse 0.25A-6.3A 250V


    Part

    No.

    Ampere

    Rating

    Voltage

    Rating

    Max Voltage

    Drop (mv)

    I2TMelting

    Integral(A2.S)

    Agency Approvals

    ULVDECCC
    TBP0250A250mA250V2400.06
    TBP0315A315mA250V2200.09
    TBP0400A400mA250V2000.2
    TBP0500A500mA250V1900.4
    TBP0630A630mA250V1801.0
    TBP0800A800mA250V1601.9
    TBP1100A1A250V1404.2
    TBP1125A1.25A250V1308.7
    TBP1160A1.6A250V12010.1
    TBP1200A2A250V10020.3
    TBP1250A2.5A250V10040
    TBP1315A3.15A250V10068
    TBP1400A4A250V100100
    TBP1500A5A250V100133
    TBP1630A6.3A250V100172

    Operating Characteristics Of The UL CCC VDE Time Lag Glass Tube Fuse 0.25A-6.3A 250V


    % of Ampere Rating(In)

    Blowing Time

    210%*In2 min Max
    275%*In400 ms~10 s
    400%* In150 ms~3s

    Packing Quantity Of The UL CCC VDE Time Lag Glass Tube Fuse 0.25A-6.3A 250V


    Bulk 500 pcs in per poly bag;
    10 poly bags in per inner box;
    4 inner boxes in per outer carton

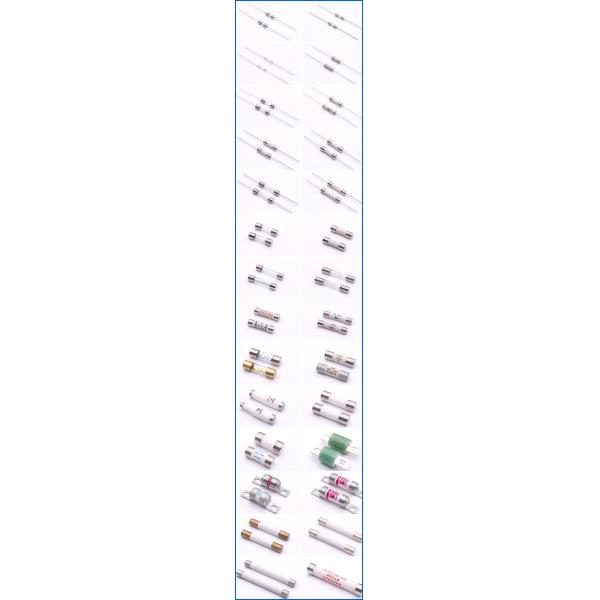

    Other Type Fuse
