    -20c Stainless Steel 50k Thermistor Temperature Sensors Thermistor Temperature Probe 3950

    Ask Lasest Price
    Brand Name : AMPFORT
    Model Number : CWFB0503FC-421F1C
    Certification : RoHS
    Price : Contact May Zheng
    Payment Terms : T/T, Western Union
    Supply Ability : 11,000,000 Pieces Per Month
    Delivery Time : 2 Weeks
    • Product Details
    • Company Profile

    -20c Stainless Steel 50k Thermistor Temperature Sensors Thermistor Temperature Probe 3950

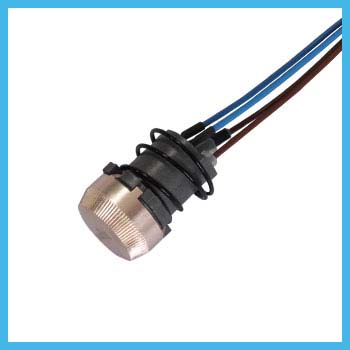

    Stainless Steel Thermistor Temperature Sensor Probe 50K 3950 For Smart Rice Cooker


    Applications Of The Thermistor Temperature Sensor Probe 50K 3950 For Smart Rice Cooker


    1. Rice cooker,
    2. Toaster, Microwave oven, Air dryer, Roasting pan, Induction cooker, Electric hot plate,
    3. Incubator temperature control, Egg boiler,


    Features Of The Thermistor Temperature Sensor Probe 50K 3950 For Smart Rice Cooker


    * Customization available

    * Withstand high temperature

    * Food safe hardware parts used

    * High accuracy ntc thermistor choosed

    * International Standard Cable

    * Faston termination design


    Dimensions Of The Thermistor Temperature Sensor Probe 50K 3950 For Smart Rice Cooker (unit:mm)


    NOCOMPONENTMATERIAL AND SPECIFICATIONSQ'TYREMARK
    2-1.ElementR25=50KΩ±1% B25/50=3950±1% DD1
    2-2.HousingY216J-A Aluminum (surface of the sand)1
    Φ21×Φ25.5+3.6+21 Electrolytic plate inside the card
    Electric rice cooker spring Φ0.8*6S SUS304
    2-3.CoatingThermal conductive silicone
    Electrolytic plate0.8 mm electrolytic iron base plate ("RS-50K" Logo)1
    2-4.Lead WireUL 1332# 22AWG 200℃ 300V2 White
    2-5.CasingInside the outer plastic fibers Φ4.5*4.6 L1=32mm, PTFE Casing 13L 250℃ L=80mm
    2-6.TieCable Ties1White
    2-7.Copper stripRiveting copper strip : 6.0 (riveting fuse), 4.0 (riveting Ground wire),2.0 (Riveting resistance wire)6
    2-8.TerminalXH-2.54 & XH-3Y3White

    187 Straight lock terminals (Riveting fuse the long end),

    187 protect the casing(blue)

    1
    4.2*16.5 Ring terminal *2(Ground wire end + Fuse(short end))1

    Electrical Performances Of The Thermistor Temperature Sensor Probe 50K 3950 For Smart Rice Cooker

    NOItemSignTest ConditionsMin.Normal valueMax.Unit
    4-1.Resistance at 25℃R25

    Ta=25±0.05℃

    PT≦0.1mw

    49.550.050.5
    4-2.B ValueB25/503910.539503989.5k
    4-3.Dissipation factorσTa=25±0.5℃3//mw/℃
    4-4.Time constantτTa=25±0.5℃//15sec
    4-5.Insulation resistance/500VDC100//
    4-6.Withstand voltage/1500V AC5//Sec
    4-7.Operating temp.range//-20/+250


    Similar Models Of The Thermistor Temperature Sensor Probe 50K 3950 For Smart Rice Cooker



    HOW TO ORDER Thermistor Temperature Sensor Probe 50K 3950 For Smart Rice Cooker


    In order to help you get the exact model, please offer the following necessary info:

    1. Probe material and size
    2. Chip
    3. Wire material and length
    4. Terminal (tail treatment)
    5.Or in the form of drawings can also be displayed


    FAQ Of The Thermistor Temperature Sensor Probe 50K 3950 For Smart Rice Cooker


    1.What is your sample policy?
    A: We can supply the free sample , but the customers have to pay the courier cost.
    2. Why the price is so low?
    A: You are ordering directly from the factory.
    3. How can I get the quotation and specifications?
    A: The product is customized, we can produce based on clients' requirements.
    4. How do you make our business long-term and good relationship?
    (1). We keep good quality and competitive price to ensure our customers benefit;
    (2). We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.
    5. What is your terms of packing?
    A: Generally, we pack our goods in neutral white boxes and brown cartons. If you have legally registered patent, we can pack the goods in your branded boxes after getting your authorization letters.
