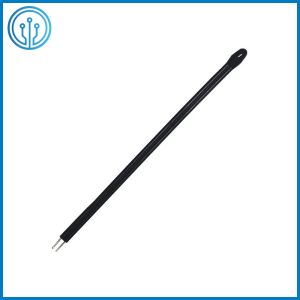

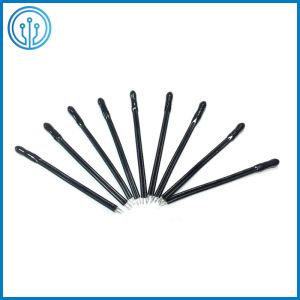

Epoxy Coated NTC Thermistor MF52D 10K 1% 3950 50MM PVC Cable For Hand Warmer

I Overview Of The Epoxy Coated NTC Thermistor MF52D

MF52D PVC Cable NTC thermistor is widely used for Air conditioning equipment, heating equipment, medical equipment, temperature control instruments, electronic gifts, electronic thermometers and hygrometers, car temperature measurement, electronic calendars, rechargeable battery packs and chargers, laptop batteries. with advantage high precision, small size, low cost and huge production capacity.We can provide rock price if quantity is good enough.

II Working Principle Of The Epoxy Coated NTC Thermistor MF52D

The NTC thermistor is a kind of resistance whose resistance value can be changed. Its resistance depends on the temperature. The resistance of the power NTC thermistor decreases with the increase of temperature. NTC is usually used as a temperature sensor, or used in series with a circuit as a surge current limiter.
Many NTC thermistors are made of semiconductor material (such as sintered metal oxide) discs, rods, plates, beads or cast chips. SHIHENG NTC thermistors are popular for their stable and reliable output. We have the experience and ability to customize NTC thermistor according to customer needs.

III Dimension Of The Epoxy Coated NTC Thermistor MF52D (mm)

IV Specification Of The Epoxy Coated NTC Thermistor MF52D

B25/50:3100K ~ 4500K
Mounting Type:Through Hole
Operating Temperature:-40°C ~ 125°C
Package / Case:Bead
Packaging:Bulk
Power - Max:50mW
Resistance in Ohms @ 25°C:0.1k ~ 1000 KOhm

V Features Of The Epoxy Coated NTC Thermistor MF52D

1: MF52 series products are co-directional lead epoxy coating type

2: Wide resistance range: 0.1KΩ~500KΩ

3: High resistance and B value accuracy

4: Anti-moisture, good insulation, high reliability, small time constant

5: Small size, fast response speed

6: Can work stably for a long time, with good consistency

7: Operating temperature range: -40~125℃

VI Other Products Of The Epoxy Coated NTC Thermistor MF52D

VII How to choose Of The Epoxy Coated NTC Thermistor MF52D

Positive temperature coefficient thermistor (PTC) is generally used in refrigerator compressor starting circuit, color picture tube degaussing circuit, motor overcurrent overheat protection circuit, current limiting circuit and constant temperature electric heating circuit. The commonly used thermistors in the compressor starting circuit are mz-01 ~ mz-04 series, MZ81 series, MZ91 series, MZ92 series and MZ93 series. According to different types of compressor to choose suitable for its starting thermistor, in order to achieve the starting effect. Color television, computer monitor used on the demagnetizing thermistor MZ71~MZ75 series. According to the working voltage (220V or 110V) of the TV set, the display, the working current and the specifications of the demagnetizing coil, the demagnetizing thermistor whose nominal resistance, maximum starting current and maximum working voltage meet the requirements can be selected. Low-power PTC thermistors for current limiting use include MZ2A~MZ2D series and MZ21 series, and PTC thermistors for motor overheat protection include MZ61 series. Models with nominal resistance value, switching temperature, working current and dissipation power that meet the requirements of the application circuit should be selected.

Negative temperature coefficient thermistor (NTC) is generally used in a variety of electronic products for microwave power measurement, temperature detection, temperature compensation, temperature control and voltage stabilization. The commonly used NTC thermistors for temperature detection are MF53 series and MF57 series, and each series has a variety of models (the same type, different types of NTC thermistors, standard resistance values are also different) to choose from. MF21 series, RR827 series and so on are commonly used for voltage stabilizing NTC thermistors. The voltage stabilizing value and working current of thermistors can be selected according to the reference voltage designed by the application circuit. Common temperature compensation, temperature control with NTC thermistor MF11~MF17 series. Commonly used NTC thermistors for temperature measurement and temperature control include MF51 series, MF52 series, MF54 series, MF55 series, MF61 series, MF91~MF96 series, MF111 series, etc.The MF52 series and MF111 series NTC thermistors are suitable for temperature measurement and temperature control circuits in the temperature range from -80℃ to +200℃. The MF51 series, mf91-mf96 series NTC thermistors are suitable for temperature measurement and temperature control circuits below 300℃. MF54 series and MF55 series NTC thermistors are suitable for temperature measurement and temperature control circuits below 125℃. MF61 series and MF92 series NTC thermistors are suitable for temperature measurement and temperature control circuits above 300℃. When selecting a temperature control thermistor, attention should be paid to whether the temperature control range of the NTC thermistor meets the requirements of the application circuit.
