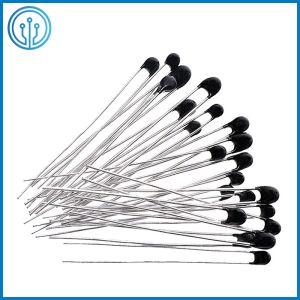

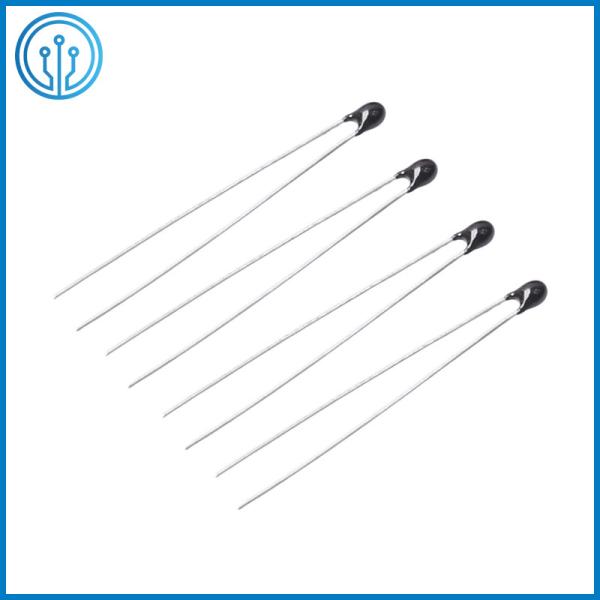

Enamelled Pearl Shaped Precision MF52 NTC Thermistor For Temperature Measurement

I Overview Of The MF52 NTC Thermistor

MF52 Series bead temperature thermistor is made of new materials, new technology of production of small type epoxy resin coating of NTC thermistor, has the advantages of high precision and fast response. It is subdivided into various subseries according to the difference in lead wire configuration.The MF52 series is ethoxyline resin coated. The small size is made possible by materials and manufacturing methods which provide the benefit of close tolerances and fast response.



II Typical Applications Of The MF52 NTC Thermistor

1. Temperature control instruments
2. Electronic gifts
3. Electronic temperature and humidity meter
4. Auto temperature measurement
5. Electronic calendar
6. Rechargeable batteries and charger
7. Heating, ventilation and air conditioning
8. Temperature regulation and measurement
9. Electronic thermometers
10. Liquid level sensing
11. Automotive electronics
12. Medical equipment and apparatus
13. Battery packs and portable electronics

III Features Of The MF52 NTC Thermistor

• Long-term stability and reliability
• Excellent tolerance and interchangeability
• Tin plating steel wire
• Radial type epoxy resin encapsulation
• Wide range of resistance
• High precision
• Small size and fast response

IV Specifications Of The MF52 NTC Thermistor

• B25/50:3380K ~ 4150K
• Mounting Type:Through Hole
• Operating Temperature:-55°C ~ 125°C
• Package / Case:Bead
• Packaging:Bulk
• Power - Max:50mW
• Resistance in Ohms @ 25°C:1.5k ~ 220k

Remark:
* B Value (25/50C) error is ±1% for components with rated resistance tolerance of ±1% and ±2% for all others.
Notice:
* The two ends of the lead wire cannot endure too big pull because of the small size and soldered spot in series of MF52.
* Solder at least 5mm from the bottom of wire.


V Dimension Of The MF52 NTC Thermistor (mm)

A: Tin. Ag. nickel plated cu wire

B: Enamelled cu wire

C: High temp fluorin-plastic wire

E: Lead and head according to specification

F: Tinned Lead-Frame Style
