Semitec 103AT-2 Cross Frame Lead NTC Thermistor MF52F 10K 3435 With Stuck Points

I Description Of The NTC Thermistor MF52F 10K 3435 With Stuck Points

NTC thermistor refers to a thermistor with a negative temperature coefficient. It is a high-performance ceramic that uses a single high-purity material and has a structure close to the theoretical density. Therefore, while achieving miniaturization, it also has the characteristics of small resistance value, temperature characteristic fluctuations, and fast response to various temperature changes, enabling high-sensitivity and high-precision detection. The company provides small, high-reliability products with various shapes and characteristics to meet the application needs of our customers.

Note: Head size range: 1.8~4MM (customized according to customer requirements)

Epoxy resin color: black, blue (customized according to customer requirements)

Pin type: with card points, straight feet, side by side (customized according to customer requirements)

II Application range Of The NTC Thermistor MF52F 10K 3435 With Stuck Points

1. Air conditioning equipment, heating equipment, medical equipment, temperature control instruments, electronic desk calendars, perpetual calendars, gift toys, indoor thermometers, remote controls, electronic gifts, electronic thermometers and hygrometers, automotive temperature measurement, electronic perpetual calendars, rechargeable battery packs and chargers , PCB, CPU, TCXO, etc. temperature compensation, switch;

2. Various room temperature temperature sensors;

3. It can completely replace the Shizuka 103AT specification.

III Features Of The NTC Thermistor MF52F 10K 3435 With Stuck Points

1. With positioning steps, it is convenient for automatic welding and protects the chip.

2. Good resistance consistency, strong interchangeability, stable and reliable

3. Operating temperature range -50C~+125C

4. Other electrical parameters and sizes can be made according to your needs

IV Ordering code Of The NTC Thermistor MF52F 10K 3435 With Stuck Points

1. Epoxy coating thermistor MF52 series
2. Lead wire style code :

Model A: Tin. Plated copper wire
Model B: Enameled wire
Model C: High temperature PTFE wire
Model D: PVC insulation wire
Model E: Tie bar steel wire
Model F: Customer require

1. Resistance value at 25°C
2. Resistance tolerance code : (F:±1%, G:±2%, H:±3%, J:±5%, K:±10%)
3. Beta value

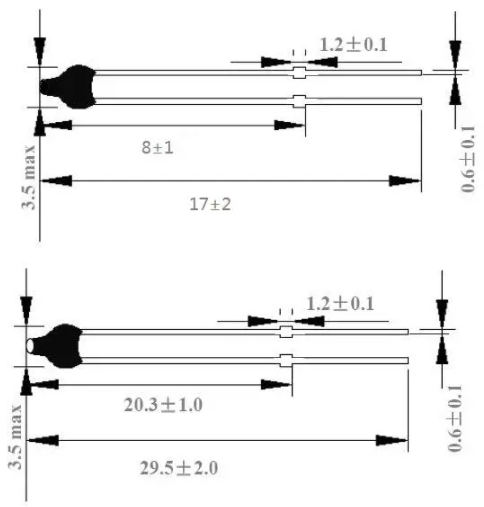

V Parameter Of The NTC Thermistor MF52F 10K 3435 With Stuck Points

Common parameters: 10K, 50K, 100K; common B value: 3435, 3950;

Common wire diameters: 0.18, 0.3, 0.4, etc. The materials are pure copper and copper clad steel.

VI Actual Product Photo Of The NTC Thermistor MF52F 10K 3435 With Stuck Points

VII Factory Of The NTC Thermistor MF52F 10K 3435 With Stuck Points

VIII Inspection Equipments Of The NTC Thermistor MF52F 10K 3435 With Stuck Points

Dongguan Ampfort Electronics Co., Ltd. is a high-tech enterprise specializing in R&D, manufacturing and sales, committed to becoming a comprehensive supplier of circuit protection components.

We introduced advanced quality system,management systems and high-precision automation equipment from Germany, set up multiple production bases and continue to increase product lines. Our team consist of experienced engineers, passionate business elites, and regularly trained skilled workers, which provides a solid foundation for quality assurance and productivity performance. Moreover, our products have passed safety certifications of many countries and are favored by many consumers by years’ unremitting efforts.

We cooperated with universities and colleges, and will continue to research and develop new products , committed to high-quality circuit protection solutions, and provide global customers with efficient technology, products, and testing support to meet their requirements for rapid development of new products. We are gradually updating from "Made In China" to "Created In China" and to "Intelligent Manufacturing In China", from circuit design to product testing, we will provide you with one-stop service in the field of circuit protection.After years of intensive cultivation, we have maintained a good relationship with our peers and have become distributor of many famous electronic component brands to meet the diverse needs of customers.

The main products include: Thermistors, Varistors, Temperature Sensors, Fuses and corresponding Hardware and Plastic accessories, Inductors, Thermal Protector, Overload/Composite Protectors, Discharge Tubes, Photoresistors and Wiring Harnesses etc. Through the combination of different process devices,Ampfort Electronics can meet customers' individual circuit protection requirements. Our products are widely used in: power adapters, switching power supplies, chargers, transformers, computers, telephones, household appliances, communication products, lighting products, toy products, various instruments and various electronic cables, electrical products, IT, Consumer electronics, automobiles, batteries and other fields.

Choose us, Ampfort will be your loyal and reliable partner for protection circuit products !
