    30A Tin Brass PCB Mount Fuse Holder PA66 12v Blade Fuse Holder

    Ask Lasest Price
    Brand Name : AMPFORT
    Model Number : SL-703C
    Certification : ROHS
    Price : 0.09~0.12 USD/PC
    Payment Terms : T/T,Paypal,Alipay
    Supply Ability : 800,000 Pieces Per Month
    Delivery Time : 7-10 Workdays
    • Product Details
    • Company Profile

    30A Tin Brass PCB Mount Fuse Holder PA66 12v Blade Fuse Holder


    JEF-703C Panel Mount Regular Standard Auto Blade Fuse Holder SL-703C 30A 32V PA66


    Function Of Fuse Holder


    The fuse holder is an electrical component installed in the circuit to provide insulation protection for the fuse and ensure the safe operation of the circuit. The function of the fuse holder is: when the circuit is faulty or abnormal, the current will continue to rise, and the rising current may damage some important or valuable components in the circuit, or it may burn the circuit or even cause a fire. If the fuse holder fuse holder is correctly installed in the circuit, then the fuse will fuse itself when the current rises to a certain height abnormally, and dangerous situations such as fire may occur. At this time, the fuse holder prays to isolate it from the outside world. The role of the circuit, thereby protecting the safe operation of the circuit.


    Features and Benefits Of The Regular Standard Auto Blade Fuse Holder SL-703C


    • Compatible fuse dimension is 6.3mmx32mm
    • Low profile fuse holder with insulation walls
    • Protection against electric shock
    • Quick connect terminal type of 6.3mmx0.8mm


    Type Of The Regular Standard Auto Blade Fuse Holder SL-703C


    * Quick insert
    * Double fuse quick insert
    * Snap-in and screw fix
    * Snap-in with cover
    * Interlock for multiple mounting
    * PCB snap-in
    * Double fuse PCB snap-in
    * Housing material: nylon
    * Contacts: brass


    Specification Of The Regular Standard Auto Blade Fuse Holder SL-703C


    Fuse SizeMini blade fuse
    Current Rating30A max
    Voltage Rating32V
    Cap Styleinsert or plug
    Compatible Fuse Length19
    SeriesFEU
    International Protection RatingIP20
    Protection CategoryPC2
    Body MaterialPA66
    Contact MaterialTin Plated Brass

    Application Of The Regular Standard Auto Blade Fuse Holder SL-703C


    • Appliances in unattended use
    • General circuit protection
    • Vehicle electrical circuits

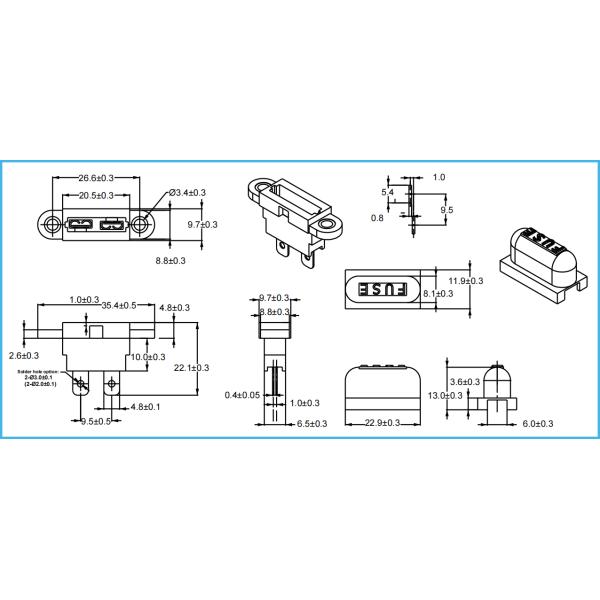

    Outline Drawing Of The Regular Standard Auto Blade Fuse Holder SL-703C (mm)



    Panel Mounting Of The Regular Standard Auto Blade Fuse Holder SL-703C


    CATEGORIES OF PROTECTION AGAINST ELECTRIC SHOCK,PC1: No integral protection against electric shock. If required, designers must provide additional protection against electric shock on equipment.,PC2: With integral protection against electric shock. Fuse-holders shall have live parts inaccessible to IEC529 standard test finger, when fully assembled, without fuse carrier or fuse in place and when fuse carrier, with fuse is being inserted or withdrawn.,PC3: With integral protection against electric shock. Fuse-holders shall have live parts inaccessible to IEC529 1mm diameter rigid test wire when fully assembled, without fuse carrier or fuse in place and when fuse carrier, with fuse is being inserted or withdrawn.


    Main Products Of The Regular Standard Auto Blade Fuse Holder SL-703C


    1) Electronic series:
    Fuses/Fuse Clips, and Blocks
    Fuse Holders
    Pico Fuses
    Resettable Fuses
    Automotive series:
    Fuse Blocks and in-Line Fuse Holders
    Power Distribution Blocks, Terminals and Battery Adapters


    2) Others:
    Automotive Audio Cables
    Speaker Cables
    Wire Harnesses
    Capacitors


    3) New product series:
    Micro Fuse series
    Automotive/RV Audio PCB Assembly & Circuit Protection Devices
